Drill bit tube

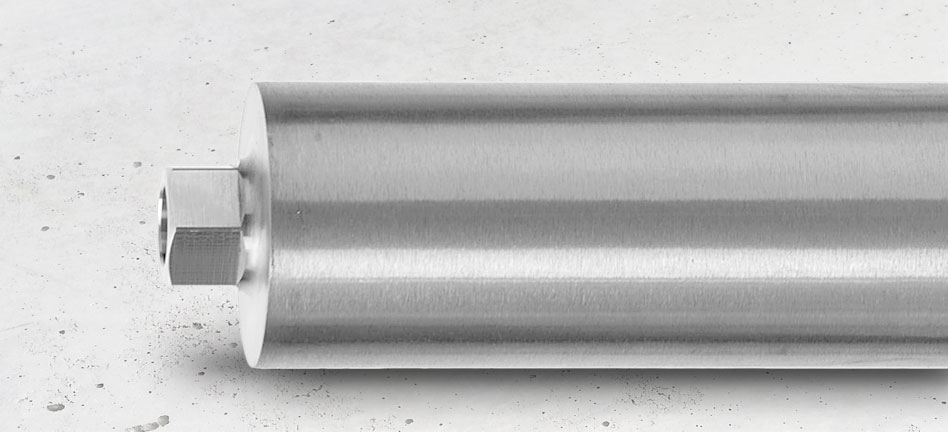

Model: bright, with Pixi connector, LASER welded
Model:
→ |
Drill bit tubes blank, connector R½“
SW 22 mm |
|
[]
|
→ |
Drill bit tubes blank, connector 1¼“ UNC SW 41 mm |
|
[]
|
→ |
Drill bit tubes blank, with 3-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with 6-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with M 41 connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with Pixi connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with DUSS connector, LASER welded |
|
[]
|
Model: bright, with Pixi connector, LASER welded
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
3915500pixi |
|
39 |
1,5 |
500 |
4015500pixi |
|
40 |
1,5 |
500 |
5015500pixi |
|
50 |
1,5 |
500 |
6020500pixi |
|
60 |
2,0 |
500 |
7020500pixi |
|
70 |
2,0 |
500 |
8020500pixi |
|
80 |
2,0 |
500 |
9020500pixi |
|
90 |
2,0 |
500 |
10020500pixi |
|
100 |
2,0 |
500 |
11020500pixi |
|
110 |
2,0 |
500 |
12020500pixi |
|
120 |
2,0 |
500 |
13020500pixi |
|
130 |
2,0 |
500 |
13620500pixi |
|
136 |
2,0 |
500 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
14020500pixi |
|
140 |
2,0 |
500 |
15025500pixi |
|
150 |
2,5 |
500 |
16025500pixi |
|
160 |
2,5 |
500 |
17025500pixi |
|
170 |
2,5 |
500 |
18025500pixi |
|
180 |
2,5 |
500 |
18425500pixi |
|
184 |
2,5 |
500 |
19825500pixi |
|
198 |
2,5 |
500 |
22325500pixi |
|
223 |
2,5 |
500 |
24825500pixi |
|
248 |
2,5 |
500 |
29830500PIXI |
|
298 |
3,0 |
500 |
34830500pixi |
|
348 |
3,0 |
500 |
39830500pixi |
|
398 |
3,0 |
500 |
All other diameters and lengths available, as well as tubes with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
Model: bright, with Pixi connector, LASER welded
|
|
Item
|
6LPIXI |
|
6hole flange x Pixi bushing
|
114MPIXIZ |
|
Adaptor 1¼“ bushing x Pixi tenon
|
114zpixim |
|
1¼“ tenon x Pixi bushing
|
All other diameters and lengths available, as well as tubes with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
Catalogue download
Please download our product catalogue:
TDBS catalogue (PDF file)
