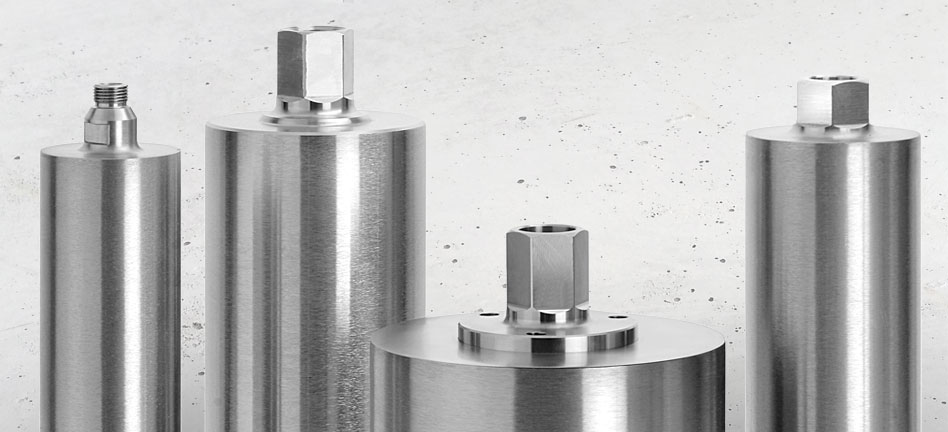

Precision drill bit tubes
Excellent raw materials are a prerequisite for every good product. Our drill
bit tubes are no exception. Like all other T.D.B.S. products, here we place
particular importance on the immaculate quality of the materials: The tubes
are produced according to DIN EN 10305/1, EN 10305/2 and EN 235+C.
Model:
→ |
Drill bit tubes blank, connector R½“
SW 22 mm |
|
[]
|
→ |
Drill bit tubes blank, connector 1¼“ UNC SW 41 mm |
|
[]
|
→ |
Drill bit tubes blank, with 3-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with 6-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with M 41 connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with Pixi connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with DUSS connector, LASER welded |
|
[]
|
Version: bright, connector R ½“ SW 22 mm
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
9103201 |
|
9 |
1 |
320 |
11103201 |
|
11,0 |
1,0 |
320 |
11153201 |
|
11,0 |
1,5 |
320 |
13103201 |
|
13,0 |
1,0 |
320 |
13153201 |
|
13,0 |
1,5 |
320 |
15103201 |
|
15,0 |
1,0 |
320 |
15153201 |
|
15,0 |
1,5 |
320 |
17103201 |
|
17,0 |
1,0 |
320 |
17153201 |
|
17,0 |
1,5 |
320 |
19103201 |
|
19,0 |
1,0 |
320 |
19153201 |
|
19,0 |
1,5 |
320 |
21103201 |
|
21,0 |
1,0 |
320 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
21153201 |
|
21,0 |
1,5 |
320 |
23103201 |
|
23,0 |
1,0 |
320 |
23153201 |
|
23,0 |
1,5 |
320 |
25103201 |
|
25,0 |
1,0 |
320 |
25153201 |
|
25,0 |
1,5 |
320 |
27103201 |
|
27,0 |
1,0 |
320 |
27153201 |
|
27,0 |
1,5 |
320 |
29103201 |
|
29,0 |
1,0 |
320 |
29153201 |
|
29,0 |
1,5 |
320 |
30153201 |
|
30,0 |
1,5 |
320 |
31103201 |
|
31,0 |
1,0 |
320 |
31153201 |
|
31,0 |
1,5 |
320 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
34103201 |
|
34,0 |
1,0 |
320 |
34153201 |
|
34,0 |
1,5 |
320 |
35103201 |
|
35,0 |
1,0 |
320 |
35153201 |
|
35,0 |
1,5 |
320 |
39103201 |
|
39,0 |
1,0 |
320 |
39153201 |
|
39,0 |
1,5 |
320 |
11104001 |
|
11,0 |
1,0 |
400 |
11154001 |
|
11,0 |
1,5 |
400 |
13104001 |
|
13,0 |
1,0 |
400 |
13154001 |
|
13,0 |
1,5 |
400 |
15104001 |
|
15,0 |
1,0 |
400 |
15154001 |
|
15,0 |
1,5 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
17104001 |
|
17,0 |
1,0 |
400 |
17154001 |
|
17,0 |
1,5 |
400 |
19104001 |
|
19,0 |
1,0 |
400 |
19154001 |
|
19,0 |
1,5 |
400 |
21104001 |
|
21,0 |
1,0 |
400 |
21154001 |
|
21,0 |
1,5 |
400 |
23104001 |
|
23,0 |
1,0 |
400 |
23154001 |
|
23,0 |
1,5 |
400 |
25104001 |
|
25,0 |
1,0 |
400 |
25154001 |
|
25,0 |
1,5 |
400 |
27104001 |
|
27,0 |
1,0 |
400 |
27154001 |
|
27,0 |
1,5 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
29104001 |
|
29,0 |
1,0 |
400 |
29154001 |
|
29,0 |
1,5 |
400 |
30154001 |
|
30,0 |
1,5 |
400 |
31104001 |
|
31,0 |
1,0 |
400 |
31154001 |
|
31,0 |
1,5 |
400 |
34104001 |
|
34,0 |
1,0 |
400 |
34154001 |
|
34,0 |
1,5 |
400 |
35104001 |
|
35,0 |
1,0 |
400 |
35154001 |
|
35,0 |
1,5 |
400 |
40154001 |
|
40,0 |
1,5 |
400 |
40204001 |
|
40,0 |
2,0 |
400 |
45154001 |
|
45,0 |
1,5 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
45204001 |
|
45,0 |
2,0 |
400 |
50154001 |
|
50,0 |
1,5 |
400 |
50204001 |
|
50,0 |
2,0 |
400 |
55154001 |
|
55,0 |
1,5 |
400 |
55204001 |
|
55,0 |
2,0 |
400 |
60154001 |
|
60,0 |
1,5 |
400 |
60204001 |
|
60,0 |
2,0 |
400 |
65154001 |
|
65,0 |
1,5 |
400 |
65204001 |
|
65,0 |
2,0 |
400 |
70154001 |
|
70,0 |
1,5 |
400 |
70204001 |
|
70,0 |
2,0 |
400 |
75154001 |
|
75,0 |
1,5 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
75204001 |
|
75,0 |
2,0 |
400 |
80154001 |
|
80,0 |
1,5 |
400 |
80204001 |
|
80,0 |
2,0 |
400 |
85154001 |
|
85,0 |
1,5 |
400 |
85204001 |
|
85,0 |
2,0 |
400 |
90154001 |
|
90,0 |
1,5 |
400 |
90204001 |
|
90,0 |
2,0 |
400 |
100154001 |
|
100,0 |
1,5 |
400 |
100204001 |
|
100,0 |
2,0 |
400 |
105204001 |
|
105,0 |
2,0 |
400 |
110154001 |
|
110,0 |
1,5 |
400 |
110204001 |
|
110,0 |
2,0 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
120204001 |
|
120,0 |
2,0 |
400 |
125204001 |
|
125,0 |
2,0 |
400 |
130204001 |
|
130,0 |
2,0 |
400 |
140204001 |
|
140,0 |
2,0 |
400 |
150254001 |
|
150,0 |
2,5 |
400 |
160254001 |
|
160,0 |
2,5 |
400 |
170254001 |
|
170,0 |
2,5 |
400 |
180254001 |
|
180,0 |
2,5 |
400 |
198254001 |
|
198,0 |
2,5 |
400 |
All other diameters and lengths available, as well as tubes with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
