Adapter für Bohrkronenrohre

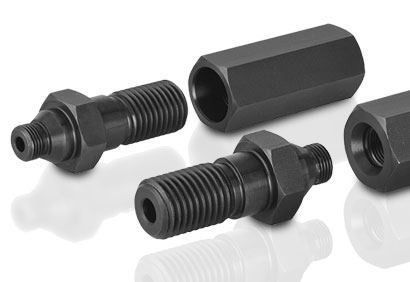

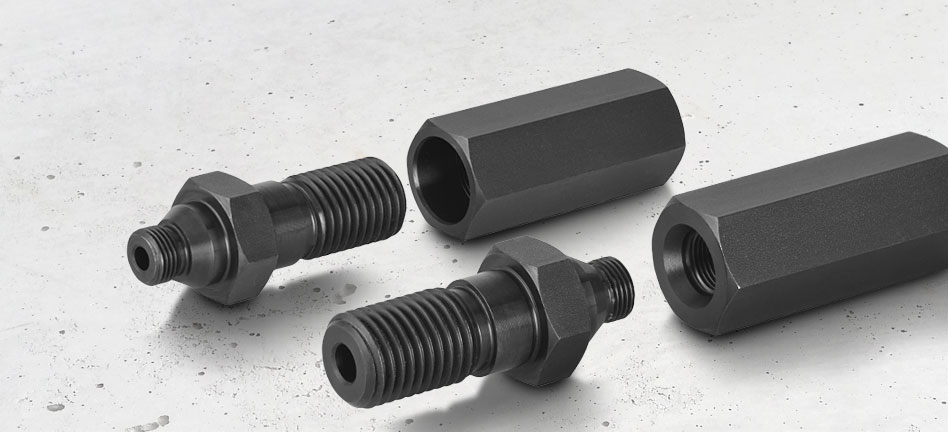

Adaptor for precision drill bit tubes




Adaptor for precision drill bit tubes | browned

Partnumber

Produktabbildung &oumL;ffnen

Type

SW (mm)

114MR12M

1 ¼" UNC bushing x R ½" bushing

41
114ZR12Z

1 ¼" UNC tenon x R ½" tenon

41
114ZBBTM

1 ¼" UNC tenon x B.B.T. bushing

46
114MBBTZ

1 ¼" UNC bushing x B.B.T. tenon

46
114ZM38M

1 ¼" UNC tenon x M38 x 4 bushing

50
114MM38Z

1 ¼" UNC bushing x M38 x 4 tenon

50
BBTZR12Z

B.B.T. tenon x R ½" tenon

46
BBTMR12M

B.B.T. bushing x R ½" bushing

46
114MM302Z

1 ¼" bushing x M30 x 2 tenon

41
R12ZM30Z

R ½" tenon x M30 x 2 tenon

114MM16Z

1 ¼" UNC bushing x M16 tenon

41
114M114M

1 ¼" UNC bushing x 1 ¼" UNC bushing

41

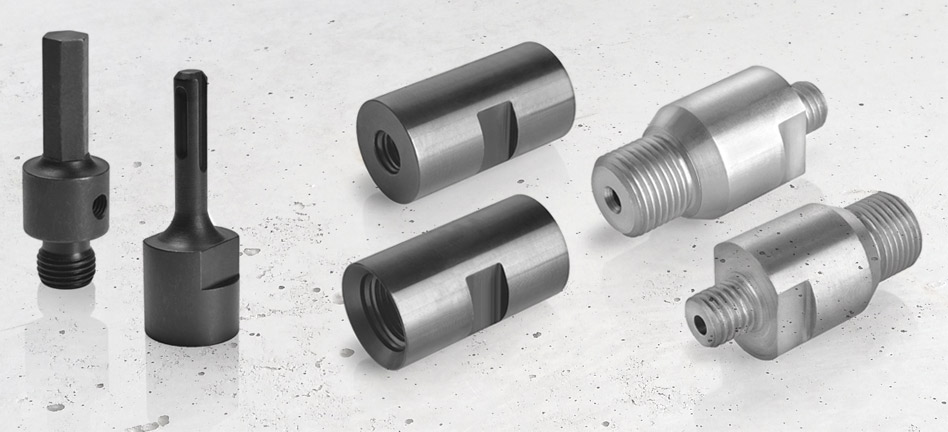

Adaptor for precision drill bit tubes | browned

Partnumber

Produktabbildung &oumL;ffnen

Type

SW (mm)

114MM18Z

1 ¼" UNC bushing x M18 tenon

41
114MPIXIZ

1 ¼" UNC bushing x PIXI tenon

41
114MR12Z

1 ¼" UNC bushing x R ½" tenon

41
114MWZ

1 ¼" UNC bushing x Würth tenon

41
114Z114Z

1 ¼" UNC tenon x 1 ¼" UNC tenon

41
114ZM16M

1 ¼" UNC tenon x M16 bushing

41
114ZM41M

1 ¼" UNC tenon x M41 bushing

41
114ZpixiM

1 ¼" UNC tenon x Pixi bushing

41
114ZR12M

1 ¼" UNC tenon x R ½" bushing

41
114ZWM

1 ¼" UNC tenon x Würth bushing

41
BBTZM38M

B.B.T. tenon x M38 bushing

41
M30M114Z

M30 x 2 bushing x 11/4" tenon

M30MR12M

M30 x 2 bushing x R ½" bushing

R12MWM

M30 x 2 bushing x Würth bushing

M41M114Z

M41 bushing x 11/4" tenon




M33 x 3,5

Partnumber

Produktabbildung &oumL;ffnen

Item

114MM18Z

1 ¼" UNC bushing x M18 Zapfen

114MM3335Z

Adaptor 1 ¼" bushing x M33x 3,5 tenon

114zm3335M

Adaptor 1 ¼" tenon x M33x 3,5 bushing

4lhydrom33sw50

4 hole flange x M33 x 3,5 SW 50 MB

6lm33353sw41

6hole flange x M33 x 3,5 with centering 19 mm

6lm33353sw50

6hole flange M33 x 3,5 SW 50 centering 19 mm Zentrierung

6lm33sw50

6hole flange M33 x 3,5 SW 50

M3335M114Z

Adaptor M33 x 3,5 bushing x 11/4“ tenon

V100M33353

Extentions 100 mm x M33 x 3,5 3 holes 8 mm SW 50

V200M33353

Extentions 200 mm x M33 x 3,5 3 holes 8 mm SW 50

V300M33353

Extentions 300 mm x M33 x 3,5 3 holes 8 mm SW 50

V400M33353

Extentions 400 mm x M33 x 3,5 3 holes 8 mm SW 50

V500M33353

Extentions 500 mm x M33 x 3,5 3 holes 8 mm SW 50

All other diameters and lengths available, as well as tubes with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
