Precision drill bit tubes

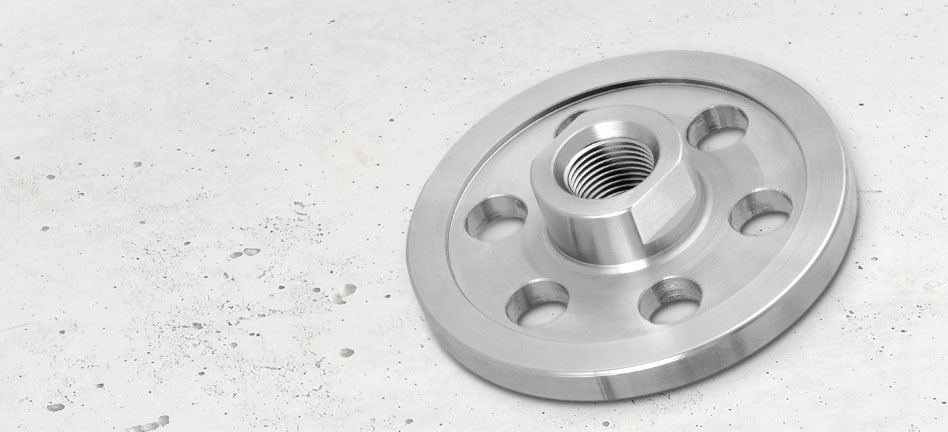

Model: bright, with DUSS connector, LASER welded
Model:
→ |
Drill bit tubes blank, connector R½“
SW 22 mm |
|
[]
|
→ |
Drill bit tubes blank, connector 1¼“ UNC SW 41 mm |
|
[]
|
→ |
Drill bit tubes blank, with 3-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with 6-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with M 41 connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with Pixi connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with DUSS connector, LASER welded |
|
[]
|
Model: bright, with DUSS connector, LASER welded
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
3915500pixi |
|
39 |
1,5 |
500 |
8020400duss |
|
80 |
2,0 |
400 |
9020400duss |
|
90 |
2,0 |
400 |
10020400duss |
|
100 |
2,0 |
400 |
11020400duss |
|
110 |
2,0 |
400 |
12020400duss |
|
120 |
2,0 |
400 |
13020400duss |
|
130 |
2,0 |
400 |
14020400duss |
|
140 |
2,0 |
400 |
15025400duss |
|
150 |
2,5 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
16025400duss |
|
160 |
2,5 |
400 |
17025400duss |
|
170 |
2,5 |
400 |
18025400duss |
|
180 |
2,5 |
400 |
19825400duss |
|
198 |
2,5 |
400 |
21025400duss |
|
210 |
2,5 |
400 |
22325400duss |
|
223 |
2,5 |
400 |
24825400duss |
|
248 |
2,5 |
400 |
All other diameters and lengths available, as well as tubes with M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
